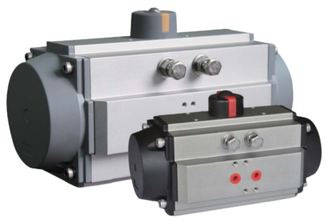

VTN Series Pneumatic Actuator
FeaturesRack and pinion structure with double-piston design Precision rack machining ensures transmission efficiency and reduces transmission impact Extruded aluminium body with internal corrosion resistance Fully compliant with ISO 9001 Fully compliant with ISO 5211, DIN 3337, and VDI/VDE 3845 NAMUR standard compliance (printed as NUMAR in the brochure) 304 or 316 stainless steel output shafts available Accessories Option Bracket, Connector, Solenoid Valve, Limit Switch Box, Proximity Sensor, Gear Box (Manual Gear Override), Positioner. TKDN Certification Local Content : 18.
Overview
Product Overview
- Rack and pinion structure with double-piston design
- Precision rack machining ensures transmission efficiency and reduces transmission impact
- Extruded aluminium body with internal corrosion resistance
- Fully compliant with ISO 9001
- Fully compliant with ISO 5211, DIN 3337, and VDI/VDE 3845
- NAMUR standard compliance (printed as NUMAR in the brochure)
- 304 or 316 stainless steel output shafts available
Accessories Option
Bracket, Connector, Solenoid Valve, Limit Switch Box, Proximity Sensor, Gear Box (Manual Gear Override), Positioner.
TKDN Certification
Local Content : 18.55%
Specifications
Technical Data
| Model | Type | Spring Qty | Flange | Square |
|---|---|---|---|---|
| VT032 | Double Acting or Spring Return | - | F03 | 9x9 |
| VT050 | Double Acting or Spring Return | 4-12 (Dedicated | F03/F05 | 11x11 |
| VT065 | Double Acting or Spring Return | 4-12 (Dedicated | F05/F07 | 14x14 |
| VT075 | Double Acting or Spring Return | 4-12 (Dedicated | F05/F07 | 14x14 |
